AE 505 Touch-Screen Label Printing Indicators
Combining the ease and intuitive navigation of an 8” / 200mm touchscreen display with the convenience of a built-in printer, USB, RS-232 and optional ethernet, Wi-Fi and Bluetooth connectivity, AE 505 ushers in the next generation of weighing indicator. In addition to creating fully customized labels of multiple lengths with the included software, AE 505 stores up to 10 label designs in its memory.
Applications
Features
AE 505 Touch-Screen Label Printing Indicators
Ideal for complex logistics tasks
Offering innovative stock and inventory control features, the AE 505 indicators combine user-friendly touch-screen controls with advanced weighing technology, offering users enhanced accuracy, built-in connectivity and all-in-one label printing convenience.
Well-suited to manufacturing facilities, shipping and receiving areas, packing locations, and distribution warehouses, AE 505 and BTT easily perform applications such as: Percentage weighing, Checkweighing, Accumulation, Parts counting, Averaging and Net total weighing.
Weighing Units:
Easily switch between a variety of weighing units, including g, kg, lb, lb:oz, oz, ct, dr, mm, tl.T and T.
Connectivity:
USB and RS-232 interfaces are available for speedy connection to computers and printers. Choose to add Bluetooth, Wi-Fi or RJ45 Ethernet modules for extra versatility.
Large Touchscreen Display
AE 505 features a generously sized 8-inch / 200mm touch-screen interface for excellent visibility and simplified operations.
Bench & Floor Scale Options
Our BTT Touch-Screen Label Printing Bench and Floor Scales offer capacities from 8kg to 300kg with readabilities from 0.1g to 20g.
Customisable Labels
Built-in printer to output bespoke labels (created with Adam’s easy-to-use label design software) and internal memory for fast recall of up to 10 label designs.
1000+ Product Look-Ups
BTT bench and floor scales offer a pop-up QWERTY keyboard to enter more than 1,000 PLU numbers and descriptions.
Data Tracking
Printouts include date and time for data tracking within Good Manufacturing Practice (GMP) guidelines.
Advanced Connectivity
Easy connectivity to PCs, printers and the optional barcode scanner via integrated RS-232 and USB ports, as well as optional Bluetooth, Wi-Fi or RJ45 Ethernet modules.

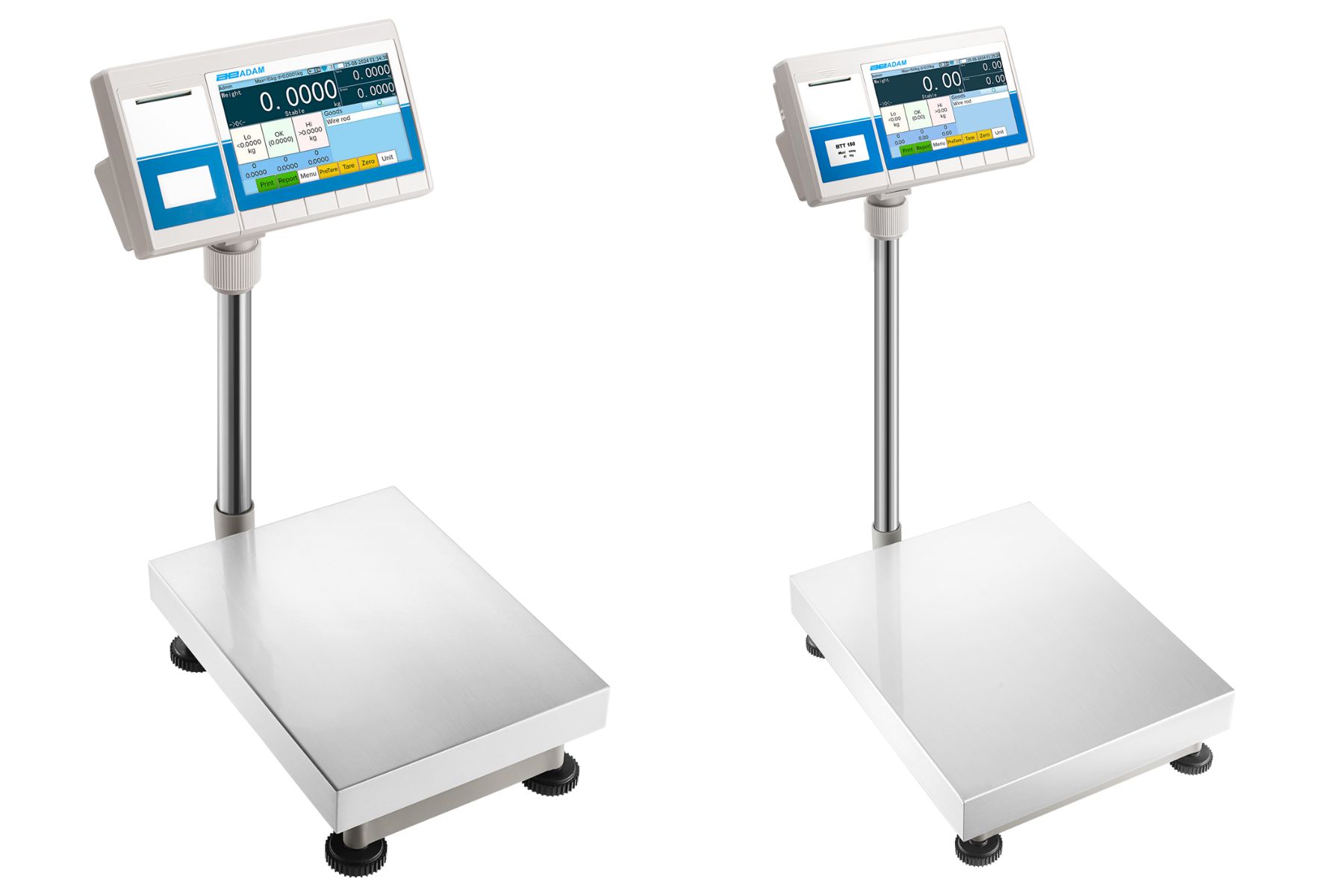

BTT Bench Scales
Capacity: 8kg to 60kg
Readability: 0.1g to 2g
Pan Size: 400 x 300mm
BTT Floor Scales
Capacity: 75kg to 300kg
Readability: 5g to 20g
Pan Size: 500 x 400mm

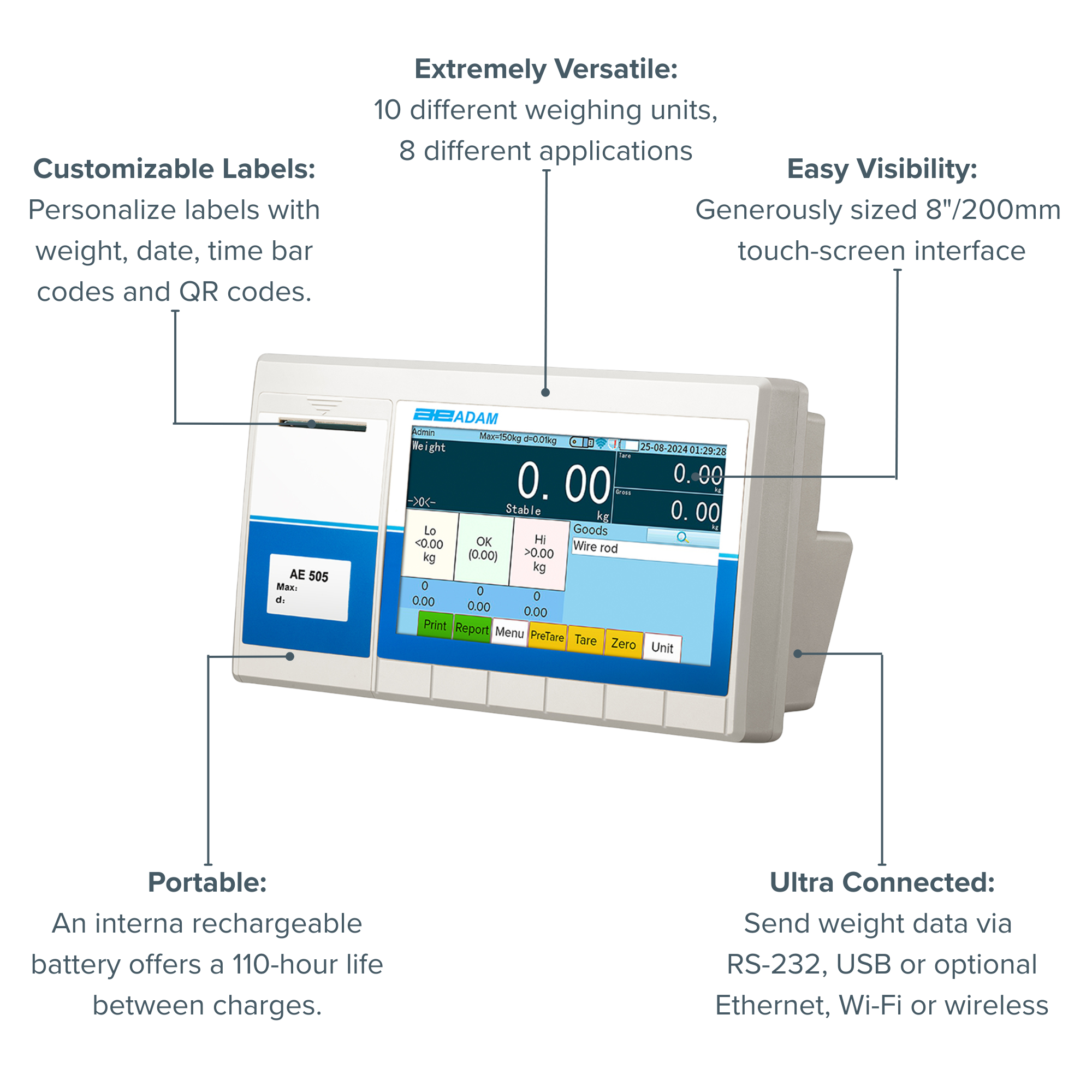

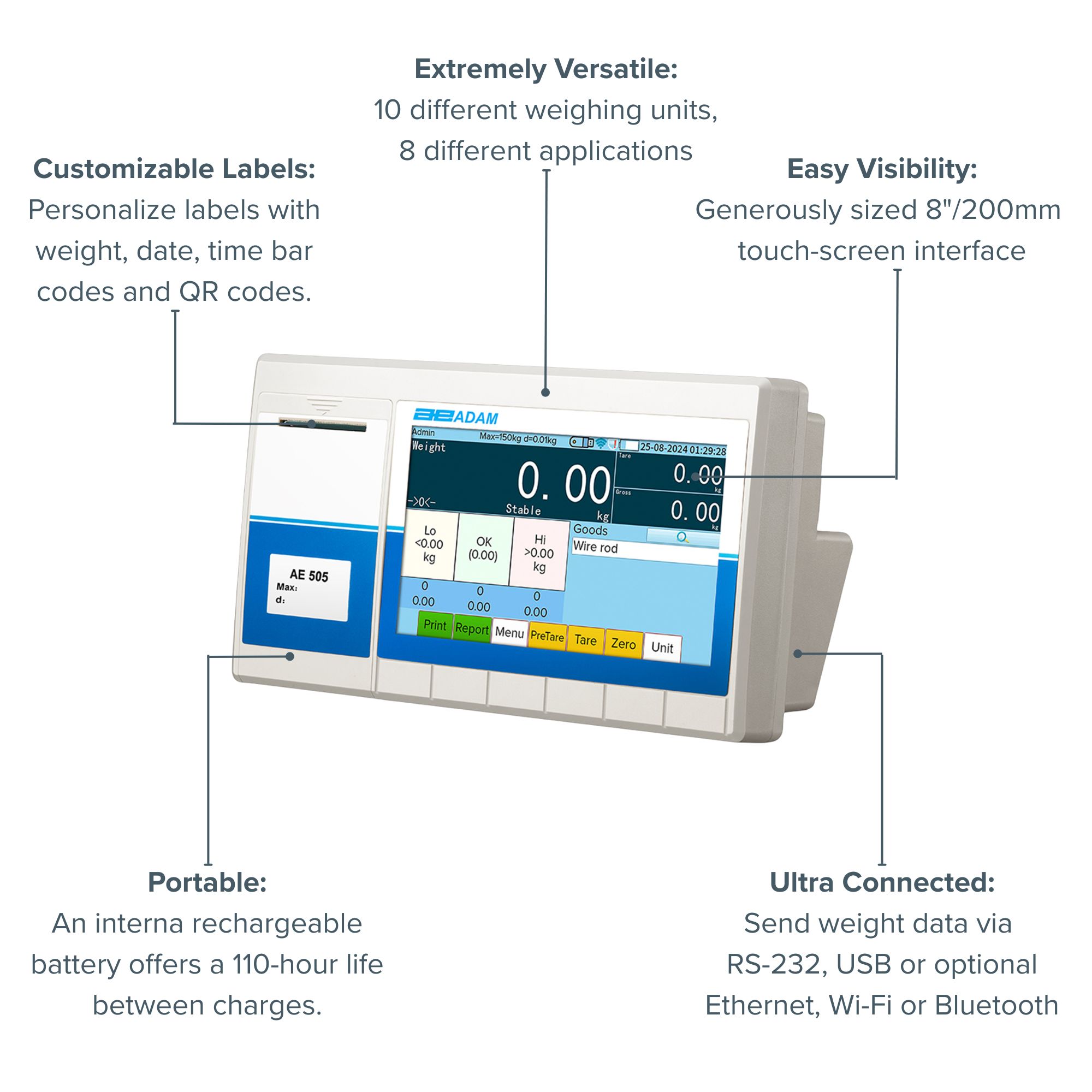

The AE 505 Touch-Screen Label Printing Indicator combines a user-friendly, intuitive interface with the convenience of a fully customisable label printer and the ease of wireless data transmission. In addition to creating custom labels (featuring options like weighing results, logos, QR codes and bar codes) of multiple lengths with the included software, AE 505 stores up to 10 label designs for frequent use. Connectivity is simple, via USB or RS-232 interfaces, as well as optional ethernet, Wi-Fi and Bluetooth. Robust enough for the demands of manufacturing facilities, shipping and receiving areas, packing locations, and distribution warehouses, AE 505 features a durable ABS plastic housing.
Features and Benefits
- Checkweighing with audible alarm
- Colour-coded keys facilitate quick recognition of the most frequently used buttons
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Large, grade 304 stainless steel pan allows easy cleaning
- Rugged construction stands up to industrial use
- Sealed keypad protects against dirt and spills
- Overload protection helps prevent damage to internal components
- Built-in printer can print weight, QR codes, bar codes and customized labels in numerous languages
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
- Memory accumulation totals results
- Parts counting optimisation automatically refines piece weight as parts are added
- Selectable digital filtering helps minimise effects of vibration and disturbances
- Zero-tracking feature ensures display returns to zero reading
- 1:600,000 internal counting resolution
- USB and RS-232 interfaces provide speedy communication with computers and printers
- Product look up (PLU) memory locations store a range of items for recall
- Selectable language for printing
- Parts counting with freely selectable sample sizes
- Pair with any compatible platform
- A 3-year warranty means quality assured for years of use.
